Product Details
＋

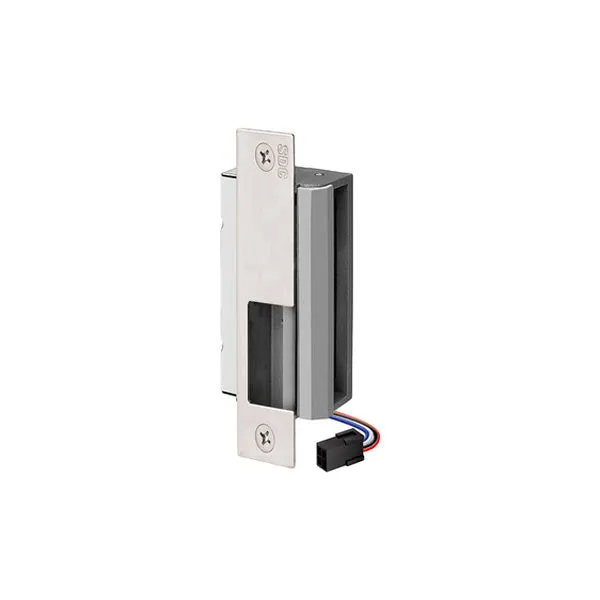

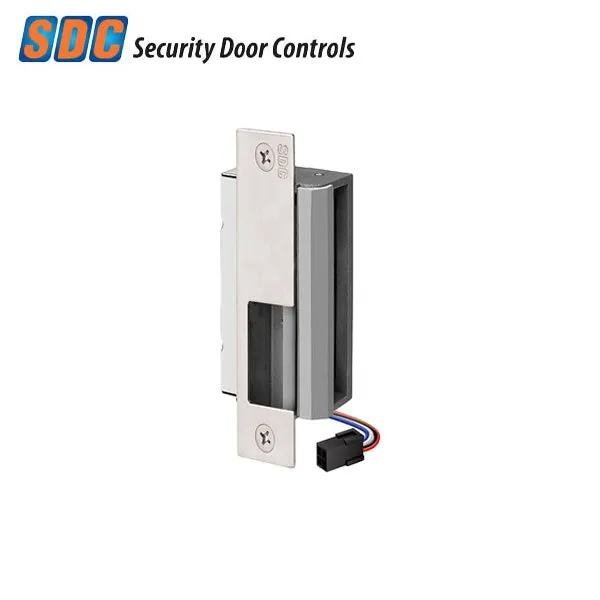

SDC’s 55 series 3/4” latch bolt electric strikes are heavy-duty, designed for installation in hollow metal frames for access control of cylindrical locksets, mortise locksets with or without deadbolts and mortise exit devices. 55 series strikes accept 3/4” throw latchbolts and up to 1” throw deadbolts.
Features:
- All Stainless Steel Corrosion Resistant
- Field reversible for failsecure or failsafe operation
- Up to ¾” Latchbolt and 1” Deadbolt
- No Centerline Relocation
- 1/8” Horizontal alignment adjustment
- Factory tested 2500 lbs. exceeds 1,000,000 cycles
- UL tested 1500 lb Static strength, 70 ft-lb Dynamic strength
- Tamper Resistant
- Non-handed
- Plug-in pig tail connectors
Specifications:
| Construction: | Stainless steel parts with durable die case body |
| Application: | • Mortise locksets without deadbolt • Mortise exit devices with or without deadlatch • Deadlatch located above the latchbolt |
| Compatible Locks: | Baldwin, Hager, Schlage, SDC |
| Dual Voltage: | 12/24 VDC ± 10% |
| Current: | 600 mA @ 12 VDC 300 mA @ 24 VDC |
| Monitoring Status: | SPDT 5 Amps @ 30 VDC Resistive |
| Fits Latch Bolt: | 5/8'', or up to 3/4'' with 1/8'' door gap |
| Faceplates: |
Mortise Locksets without Deadbolt & Mortise Exit Devices - Deadlatch Above |
| Finishes: | Satin Stainless Steel - 630 |
| Certifications: | ANSI/BHMA A156.31 Grade 1, UL 10C, UL 1034 |
| Warranty: | 5-Year Manufacturer Warranty |
